Item Code

40242

Unit

Unit : Pc

Detailed Description

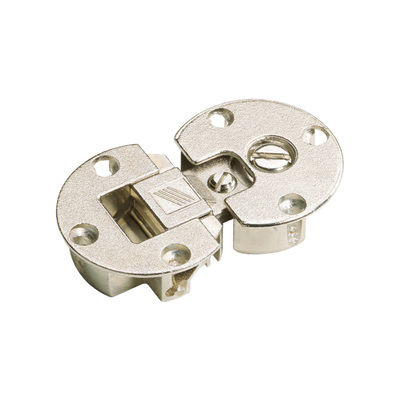

• lap hinge for overlay flaps
• Quality classification under EN 15828, Level 2
• Separate installation of bottom panel and flap element

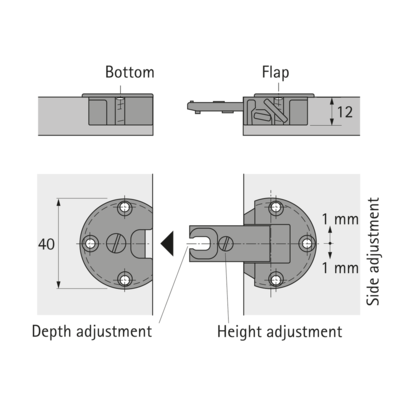

• Flap alignment through adjustment of height, sides and depth
• Same drilling sizes in bottom panel and flap elements
• Hole drilling concealed by rim on both parts
• Without height adjustment, bottom panel and flap are flush on the inside when open
• Can only be used in conjunction with flap stays
• Nickel plated die-cast zinc

Warranty

10 Years

(The warranty given is Functional warranty* of the product. Please refer the Warranty TAB under policy information for Surface warranty*)

Do’s & Don’ts for Hettich Hinges

Do’s

• Fix the hinges as per company specified drilling dimensions and procedure.
• Check the door weight and dimension before deciding quantity of hinges.
• Use high quality screws to fix the hinges so the rusting doesn’t happen on screws and spread over the hinges.
• Properly align the doors after installing the hinge.
• Clean the hinges within 2-3 months interval wipe it with dry clothes only.
• While installing make sure that the coating is not damaged.

Don’ts

• Don’t use any type of chemical for cleaning the hinge.
• Don’t install hinges on stone surface.
• Don’t use any type of lubricants in hinges.
• Do not put paint on the hinges.
