Item Code

9250982, 9250983, 9250984, 9250985

Brief Description

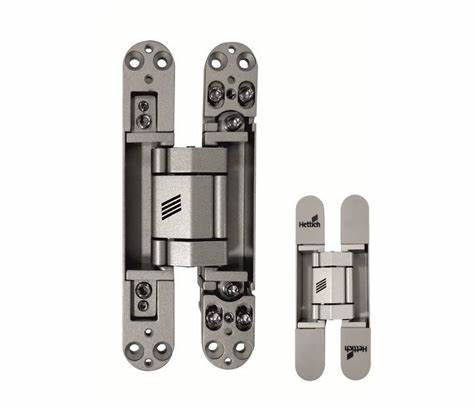

Designed to be discreetly tucked away behind the door, concealed hinges ensures smooth and silent operation: a modern marvel of door hardware offering a sleek and seamless solution for cabinetry and furniture.

Unit

Unit : Pair

Detailed Description

• Concealed installation
• Suitable for wood, steel & aluminum alloy doors
• Suitable with door closer installation along with weight calculation
• Option for use in Granite and Marble Frame Door

Specification

• Loading capacity up to 80/120 kg
• Suitable for door thickness: 40/ 45 mm
• Adjustments: vertical ±3mm, depth±1mm
• Opening angle 120°
• Finishes: Silver, Black
• Tested for 200,000 cycle

Warranty

5 Years

(The warranty given is Functional warranty* of the product. Please refer the Warranty TAB under policy information for Surface warranty*)

Do’s & Don’ts for Hettich Hinges

Do’s

• Fix the products as per company specified dimensions and procedure.
• Use high quality screws to fix the products (like Hinges, Handles etc) so the rusting doesn’t happen on screws and spread over the product.
• Make sure about the product should be aligned & fixed properly while installing.
• Clean the products with dry clothes only. • While installing make sure that the coating is not damaged.

Don’ts

• Don’t use any type of chemical for cleaning any product.
• Don’t use any type of lubricants in products.
• Don’t use the products (like door closer, hinges etc) that don’t meets the product specifications.
• Do not put paint on the fitting
